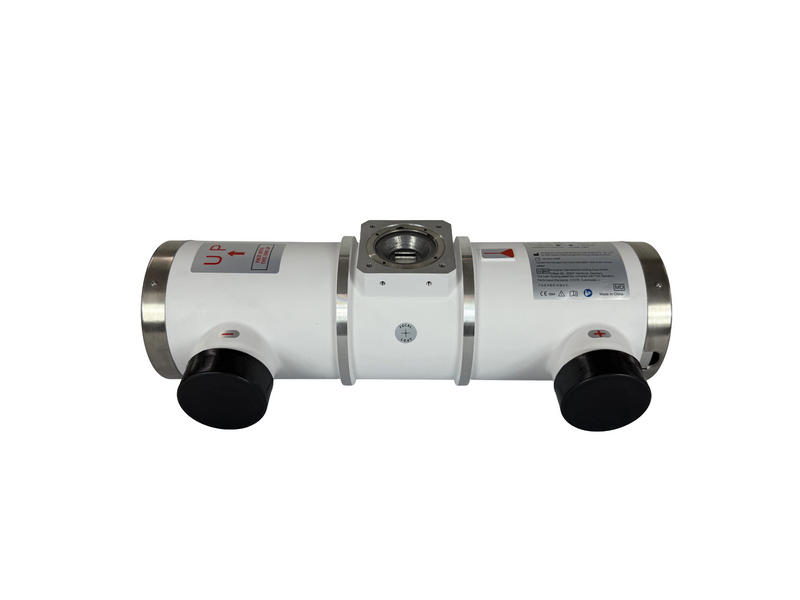

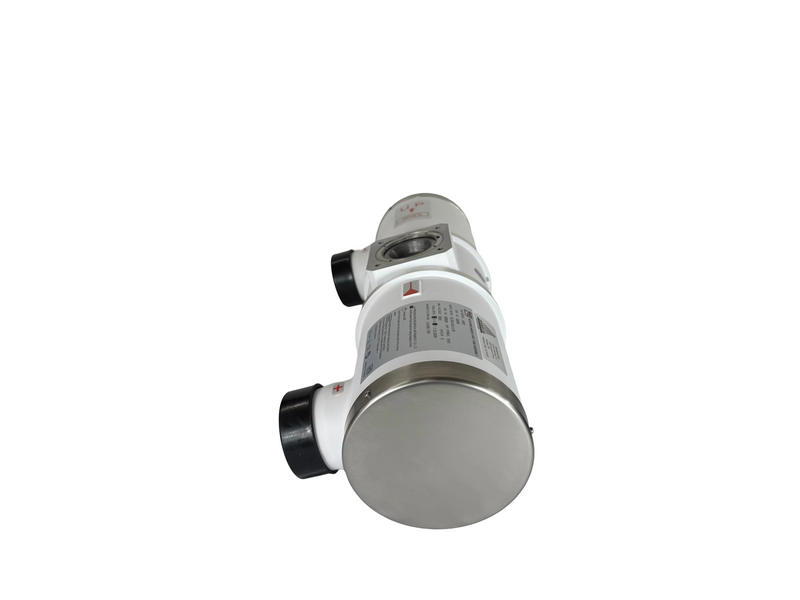

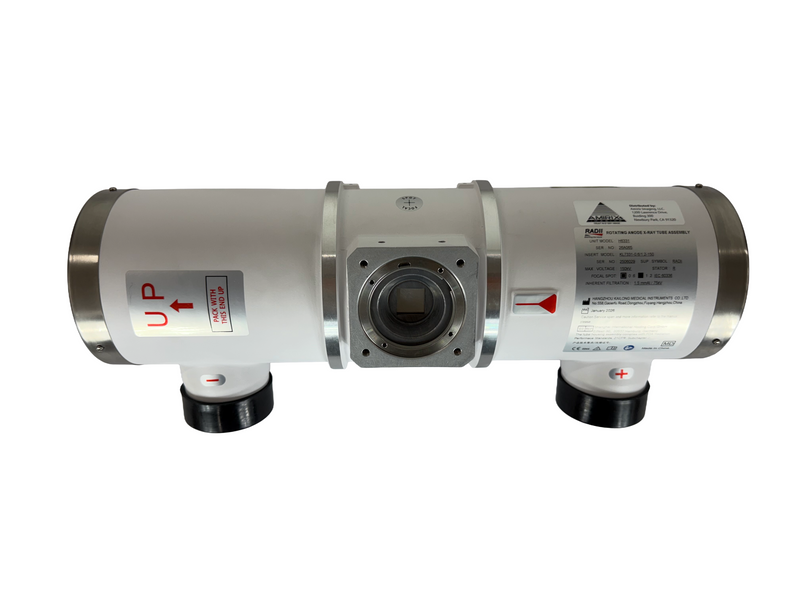

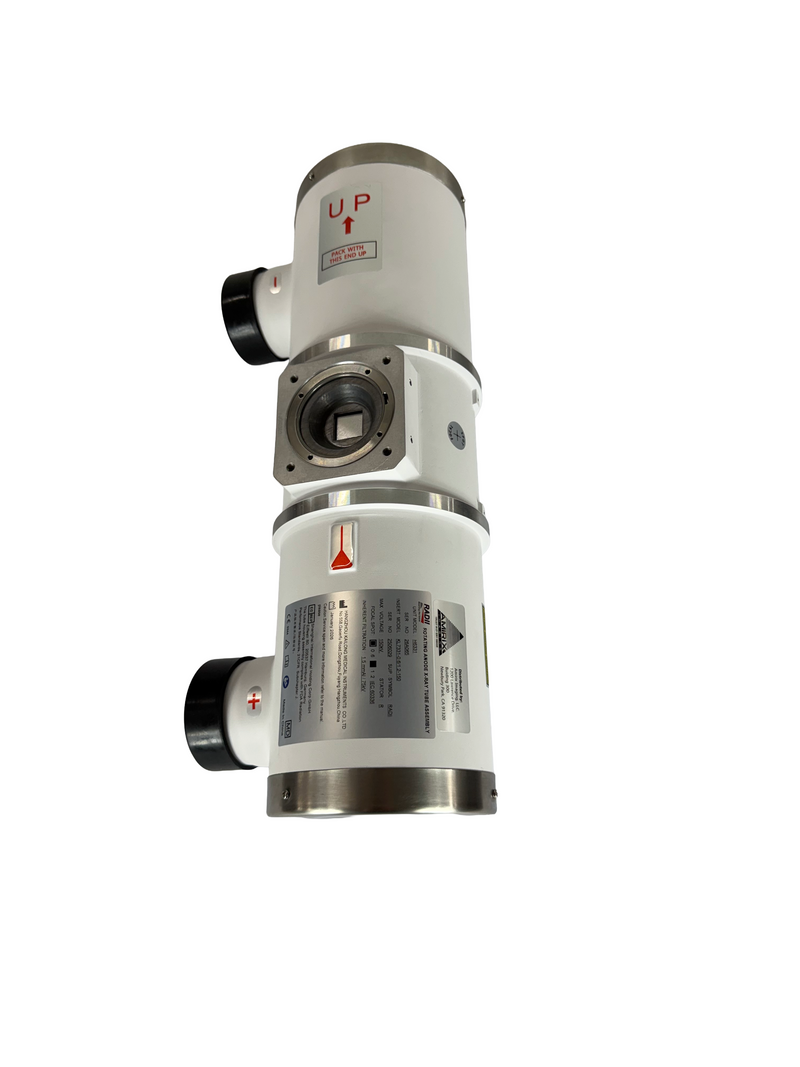

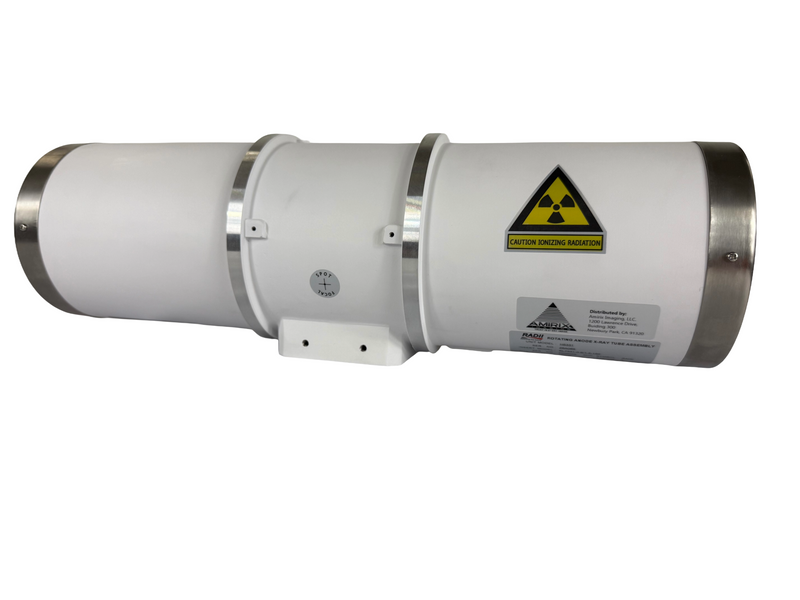

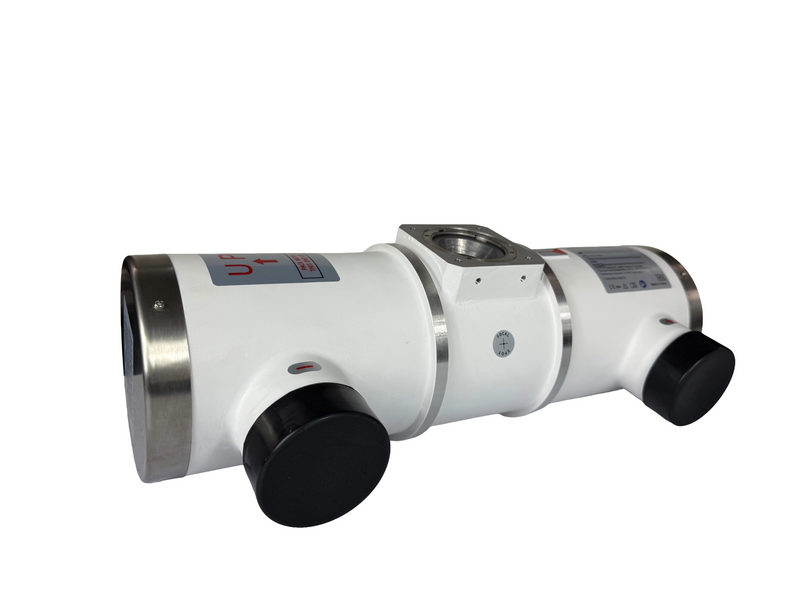

SMP E7252FX
Pricing is quoted per order. Request a quote and our engineers will follow up.
Get your price Or call +1 (310) 734-4420SKU: SMP-E7252FX
Condition: New
Modality: Radiography / R&F
Compatible systems (reference): Canon / Toshiba radiographic and R/F systems; also fitted on Sedecal, Summit, and InnoVet rad platforms
Replaces tube model: Canon / Toshiba E7252FX (90° horn angle version)
Shop Med Parts produces new E7252FX–compatible X-ray tubes (SMP-H6331-FX equivalent path) for Canon/Toshiba radiographic and R/F platforms. Units are built and validated in-house for imaging performance, thermal behavior, and system fit—then released for field use with engineering support on compatibility and installation.
OEM / part-number cross-reference
- E7252FX (90° horn)
- SMP-H6331-FX (Shop Med Parts designation)
Published electrical / mechanical reference
| Focal spot | Max voltage (kV) | Max current (mA) | Target angle | Heat capacity (kHU) | Stator type |
|---|---|---|---|---|---|
| 0.6 / 1.2 | 150 | 500 / 1200 | 12° | 300 | XS-RA / XS-AL |
Engineering notes
- 90° horn angle version — confirm housing / cable geometry against current tube
- Confirm stator variant (XS-RA vs XS-AL) before order
- Individual test / validation before release
- Compatibility confirmation available from SMP engineering (system model + current tube PN recommended)
Production process
- System intake: Confirm system model, OEM PN, and operating requirements.
- Evaluation: Assess focal-spot requirements, heat-loading profile, electrical parameters, and housing integrity.
- Verification: Stress test and inspection prior to shipment; install/calibration support available.
Warranty: 12-month pro-rated standard; final terms confirmed on your quote.
Pricing & ordering
Account / volume pricing. Contact SMP for quote, exchange vs outright, and lead time:
Phone +1 (310) 734-4420 · Request a quote via the Part Request form
Compatibility notice: New — Shop Med Parts production. Not affiliated with Canon or Toshiba. OEM names and part numbers are for compatibility reference only.
Shipping information
Same-day shipping: orders by 5 PM ship the same day.
Orders ship FOB Origin, freight prepaid and added to your invoice. Title and risk of loss pass to the buyer once goods are handed to the carrier. Please inspect all goods on arrival; rejections must be reported in writing within 5 business days of receipt.
Returns & warranty
Non-warranty returns must be requested within 5 business days of receipt through our return portal and are subject to a minimum 25% restocking fee. Approved returns must arrive within 10 business days of receipt with the supplied return documentation.
Tubes carry a 12-month pro-rated warranty as standard; final warranty terms are confirmed on your quote. All returns, including warranty returns, require prior RMA approval and are shipped back prepaid by the buyer.
