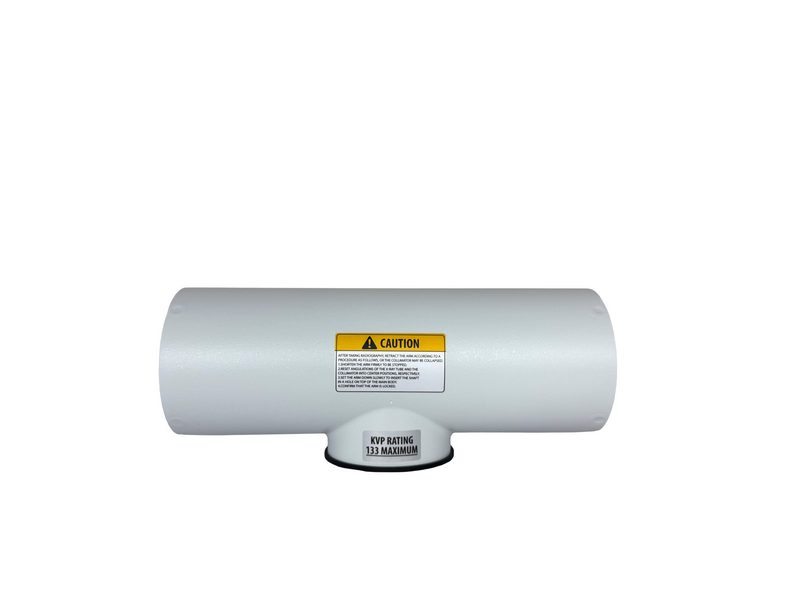

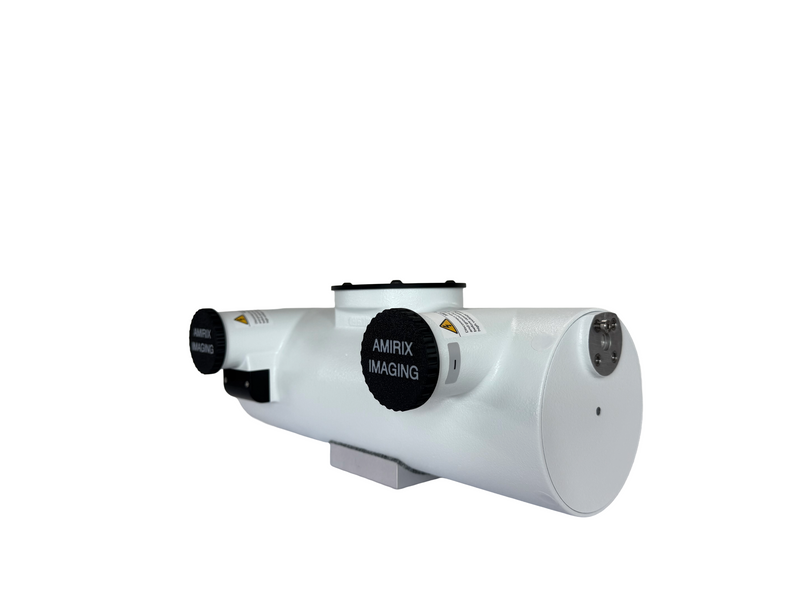

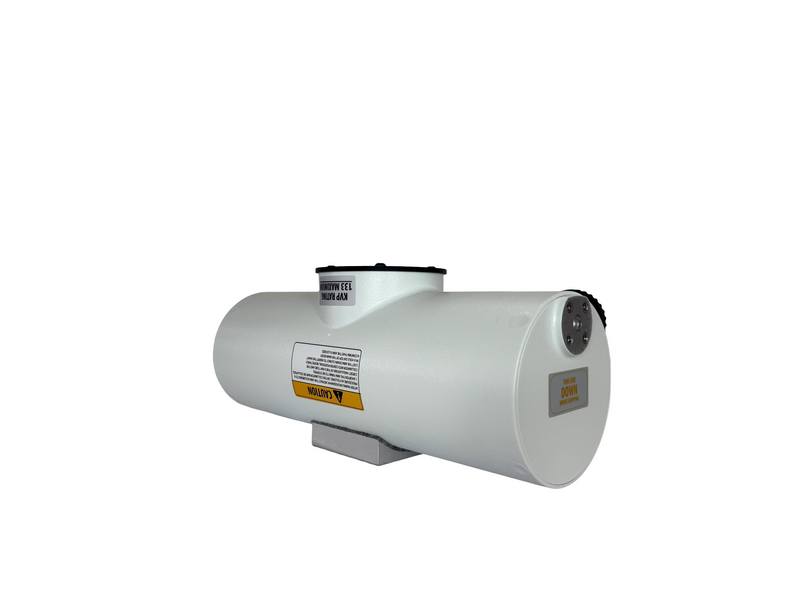

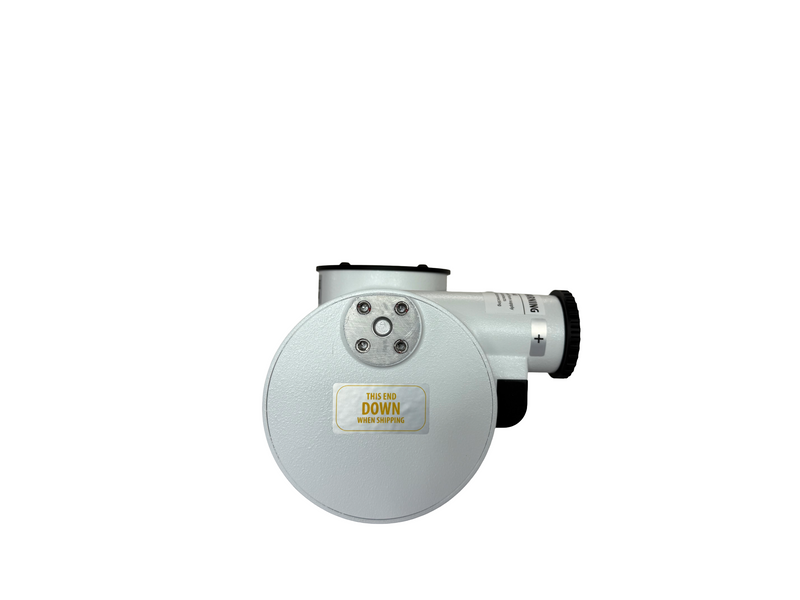

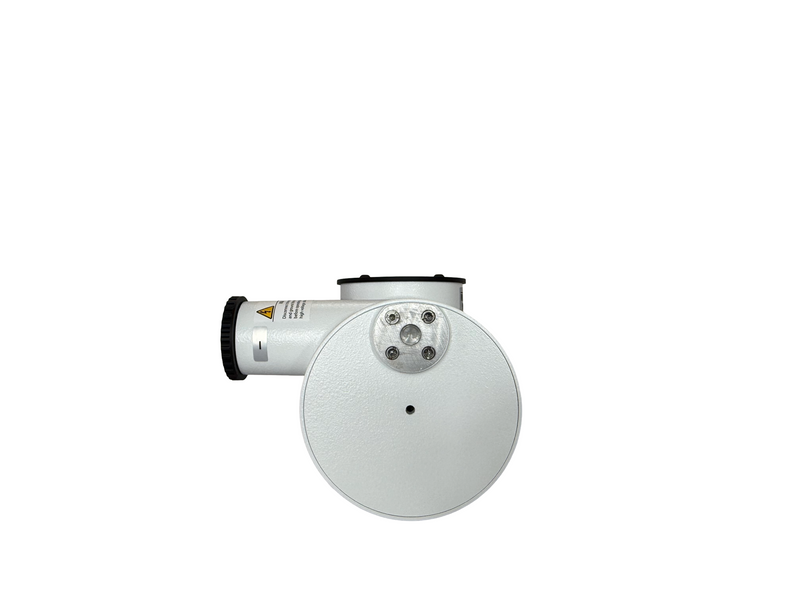

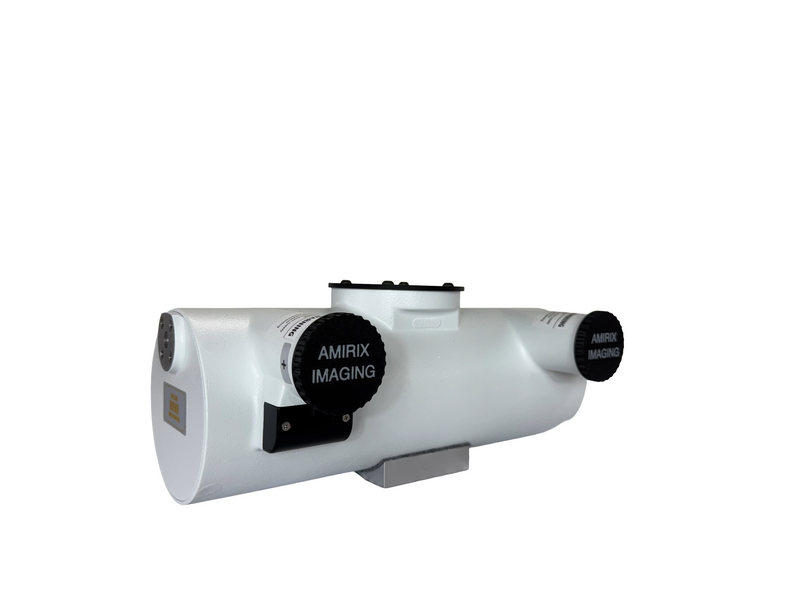

SMP MUX200
Pricing is quoted per order. Request a quote and our engineers will follow up.
Get your price Or call +1 (310) 734-4420SKU: SMP-MUX200
Condition: New
Modality: Mobile radiography
Compatible systems (reference): Shimadzu MobileArt / MUX-100 / MUX-200 portable
Replaces tube model: Shimadzu KL70
Shop Med Parts produces new KL70 / MUX-100/200–compatible X-ray tubes (SMP-MUX200 equivalent path) for Shimadzu MobileArt portable systems. Units are built and validated in-house for imaging performance, thermal behavior, and system fit—then released for field use with engineering support on compatibility and installation.
OEM / part-number cross-reference
- Shimadzu KL70
- SMP-MUX200 (Shop Med Parts designation)
Published electrical / mechanical reference
| Focal spot | Max voltage (kV) | Max current (mA) | Target angle | Heat capacity (kHU) | Stator type |
|---|---|---|---|---|---|
| 0.7 / 1.3 | 130 | 280 / 550 | 12° | 300 | N |
Engineering notes
- Intended for Shimadzu MobileArt / MUX portable duty cycles
- Confirm stator and housing fit against current tube before order
- Individual test / validation before release
- Compatibility confirmation available from SMP engineering (system model + current tube PN recommended)
Production process
- System intake: Confirm system model, OEM PN, and operating requirements.
- Evaluation: Assess focal-spot requirements, heat-loading profile, electrical parameters, and housing integrity.
- Verification: Stress test and inspection prior to shipment; install/calibration support available.
Warranty: 12-month pro-rated standard; final terms confirmed on your quote.
Pricing & ordering
Account / volume pricing. Contact SMP for quote, exchange vs outright, and lead time:
Phone +1 (310) 734-4420 · Request a quote via the Part Request form
Compatibility notice: New — Shop Med Parts production. Not affiliated with Shimadzu. OEM names and part numbers are for compatibility reference only.
